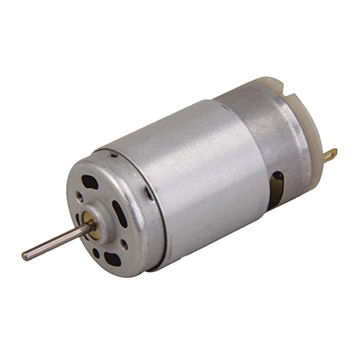

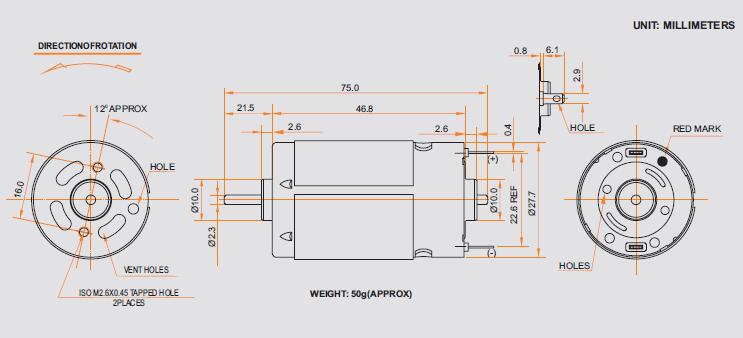

carbon brush motor CYRS-395SM-15140-R2
Typical Application
Household Appliances：Massager, Vibrator
| MODEL | OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||
| r/min | A | r/min | A | g·cm | mN.m | w | g.cm | mN.m | A | |||
| CYRS-395SM-15140 | DC15-30V | DC24V | 7450 | 0.055 | 6420 | 0.336 | 90 | 8.82 | 5.96 | 650 | 63.7 | 2.08 |
| CYRS-395SM-12230 | DC15-30V | DC24V | 3800 | 0.037 | 3100 | 0.16 | 72.2 | 7.1 | 2.395 | 384 | 37.6 | 0.7 |
