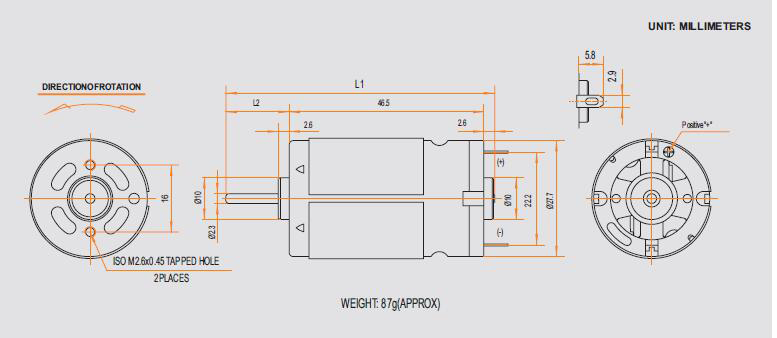

carbon brush motor CYRS-390SA-17248
Typical Application:
Household Appliances, Pump
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| CYRS-390SA-17248 | DC22-26V | DC24V | 7899 | 0.06 | 6745 | 0.35 | 86.45 | 8.47 | 6.24 | 592.1 | 58 | 2.07 |
