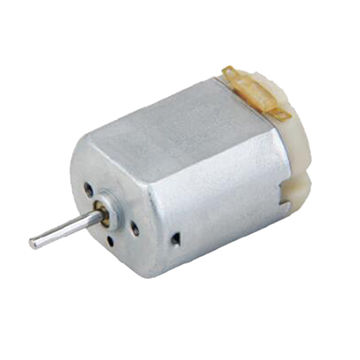

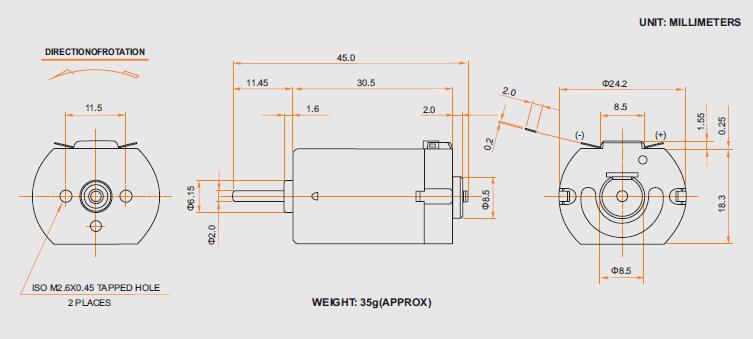

carbon brush motor CYFS-280SA-20150
Typical Application
Automotive Products ： Door Lock Actuator
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| CYFS-280SA-20150 | DC10~15V | DC13.5V | 12650 | 0.1 | 10737 | 0.55 | 45.5 | 4.459 | 5.01 | 300 | 29.4 | 3.08 |
