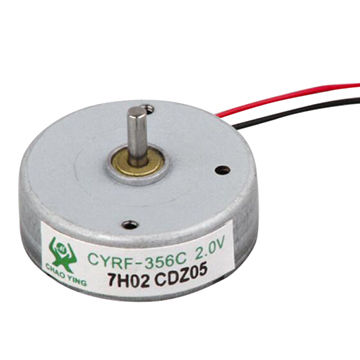

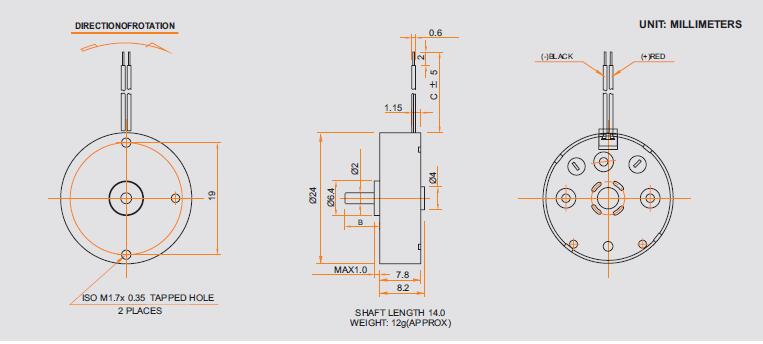

metal brush motor CYRF-356C-10220-R2
Typical Application
Audio and Visual Equipments:
1.Portable CD Player / DVD Player
2.Car CD Player
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYRF-356C-10220 | DC1.0~4.5V | DC2.0V | 3200 | 0.04 | 1950 | 0.12 | 4 | 0.39 | 0.07 | 8.5 | 0.83 | 0.25 |
