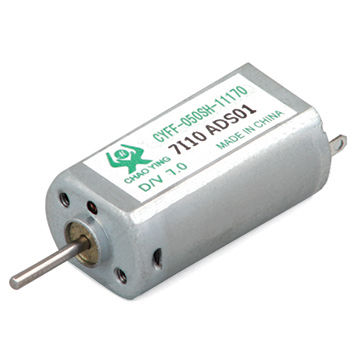

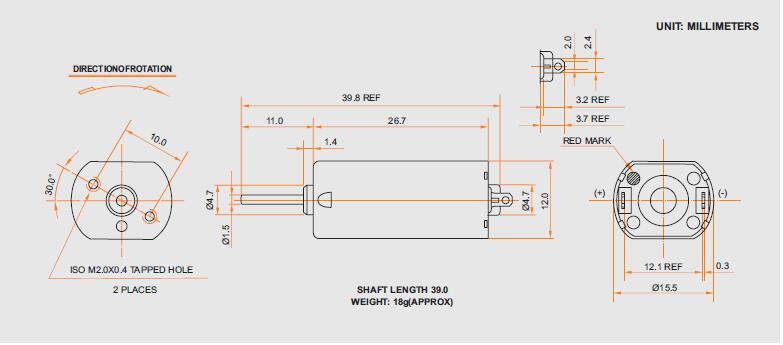

metal brush motor CYFF-050SH-11170-R2
Typical Application:
1.Audio and Visual Equipments: CD Player/Car CD Player, DVD Player
2.Household Appliances: Electric Shaver
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| CYFF-050SH-11170 | 1.5~9.0V | 7V | 10300 | 0.046 | 8500 | 0.17 | 7 | 0.69 | 0.61 | 46 | 4.51 | 0.82 |
| CYFF-050SH-13130 | 2~4V | 2V | 3700 | 0.038 | 3000 | 0.11 | 3 | 0.29 | 0.092 | 17 | 1.67 | 0.4 |
| 4V | 7600 | 0.05 | 6300 | 0.2 | 6 | 0.59 | 0.39 | 35 | 3.43 | 0.82 | ||
