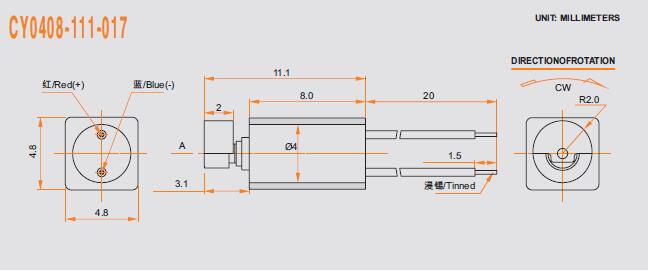

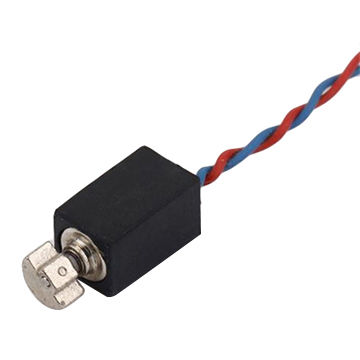

DC Coreless Motor CY0408-111-017
Typical Application
1.Game machines Mobile phone
2.Health protection equipment ,Personal care.
| MODEL | RATED Voltage | Operaing Voltage | Oscillator | RATED Speed | RATED Current | Stall Current | Armature Resistance | StartingVoltage |
| V | V | mm | RPM | mA | mA | Ω | V | |
| CY0408-211-027 | 3 | 2.6~3.6 | R2*2 | 14500 | 90 | 120 | 29 ± 20% | 2 |
| CY0408-111-017 | 3 | 2.6~3.6 | R2*2 | 14500 | 90 | 120 | 29 ± 20% | 2 |
| CY0408-111-095 | 3 | 2.6~3.6 | R2*2 | 14500 | 90 | 120 | 29 ± 20% | 2 |
